Basic Info.

Model NO.	BDNWS-2
Number of Head	2
Motor Power	8.0kw
Knitting Style	Flat
Knitting Method	Single
Computerized	Computerized
Knitting Product Type	Quilting Fabric
Transport Package	Container/Plastic Film
Specification	CE\SGS
Trademark	BCD bedding machinery
Origin	Nanjing, China
HS Code	84522110
Production Capacity	30sets/Month

Product Description

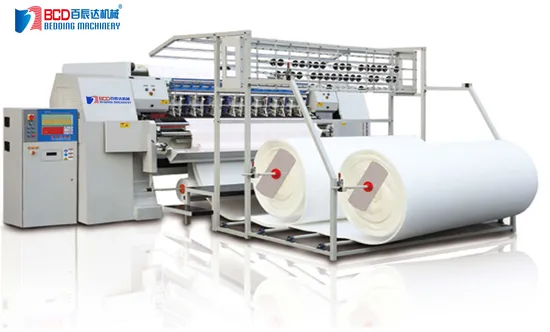

Main application and performance This machine is suitable to produce mattress ,furniture cover ,hotel decoration, housing and sleeping products ! It is chain stitch and controlled by computer system , no need to change thread frequently , needle stitch even and stable, the quilted fabric is of strong stereo vision , convenient pattern change operation , it already has 160 ready-designed patterns saved inside the computer ,and total 1000 windows for user self design . User can amend and self-design the expected pattern ,all above mentioned feature is leak from normal common quilting machines .

Quilting width	2450mm
Quilting thickness	≤80mm
Production speed	60~200M/h (depending on pattern)
Main shaft speed	700~800 rpm
Needle type	180/24
Needle bar distance	76.2, 152.4(6")
X stroke	430mm
Needle space	25.4mm
Stitch pitch	3-6
Motor power	8.0KW
Machine Weigh	4500Kg
Machine size	4715×1200×1925mm
