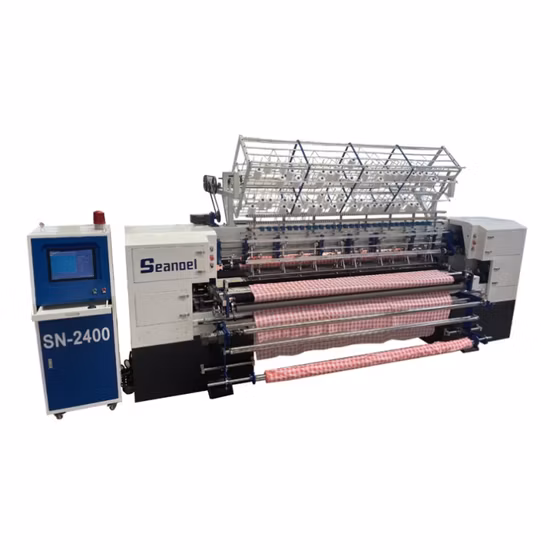

Computerized Multi Needle Punching Quilting Machine
Description
- Overview
- Warranty
- Company Profile
- FAQ
Basic Info.
| Model NO. | SN-64-Y2, SN-96-Y2, SN-128-3B |
| Number of Head | 2 Bar & 3 Bar |
| Voltage | 380V |
| Type | Computerized Quilting Machine |
| Name | Computer Quilting Machine |
| Style | Lock Stitch |
| Function | Summer Quilt , Blanket ,Sleepbag |
| Size | 64" 96" 128" |
| Needle Bar | 2 Bar & 3 Bar |
| Shuttle Size | 7# & 10# |
| Motor | Full Servo |
| Needle Space | 1 Inch |
| Needle Bar Space | 3"+1", 3"+1.5", 3"+2", 3"+3" |
| Experience | Manufacturer Since 2003 |
| Transport Package | Packing by Bubble Film,Loading by One 20FT Contain |
| Specification | 64" 96" 128" |
| Trademark | Seanoel |
| Origin | China |
| Production Capacity | 20 Sets Per Month |
Product Description
SN-64-Y2 SN-96-Y2 SN-128-3B1. It is widely used for quilting high-quality garments, quilt covers,hand bags,gloves,sleeping bags,pajamas,bedspreads,seat covers,plus material and household ornaments.
2. Needle bar and press plate are connected by cam-free double-swinging device, which is with high precision and durable. This structure can avoid lubrication and dirty material effectively.
3. High rigidity machine body and structure can make the machine running faster and more stable.
4. Adopting the new structure of press plate's adjusting makes the machine much simple.
5. Advanced and practical up thread-break detection unit.
6. Computerized automatic needle-lifting speed adjustment.
7. New generation of CNC system, advanced machine structure, high precision quilting, dispense with too much parameter adjustment or pattern modification during quilting.
8. Easy preparation of CAD drawing extremely precise.
9. Able to quilt simple embroidery patterns.
10. Fault detection and indication enabling fast fault correction and return operation.
1. All parts are guaranteed one year for non-human-made damage
2. After one year, all parts was provide without profit
3. Before buying, our businessman online 12 hours every working day to answer your questions
4. In production,production pictures and videos are available any time
5. After buying,our engineer online 10 hours every working day to help you use machine correctly
6. We provide details machine installation & user's guide and maintenance manual
Q1: Warranty,Quality and Service
A:We provide one year warranty,within one year,If machine damaged,we provide parts free;
And we provide online guidance within 12 hours,lifetime service
Q2: Experience,Professional and Engineer
A:We are a home textile manufacturer with almost 20 years experience,Our engineer online eight hours every day,we will give best
guide before buying and after buying
Q3: Trust and Safety
A:We are a family business group,all of us working in this market and can only working in this field,we must do our best because
there is no way of escape,no matter when you have troubles,you can find us always
Q4: Advantage and Why choose us
A:We have are rich experience, professional team, never absent after-sales service
we helped many many customers in the world,we are growing up together with all of our customers
Computer Shuttle Quilting Machine
| Model | SN-64-Y | SN-96-Y | SN-128-3B |
| Dimension(L×W×H) | 3600*1550*2300 | 4700×1550×2300 | 5560×1550×2300 |
| Quantity of needle bar | 2 OR 3 | 2 OR 3 | 3 |
| Quilting width | 1650mm | 2450mm | 3250mm |
| Space between needle rows | 3"+1" , 3"+1.51" , 3"+2" , 3"+3" | ||
| Space between needles | 25.4 | ||
| X-axis movement displacement | 203.2 | 305 | 305 |
| Thickness of quilting | ≤30mm | ≤30mm | ≤30mm |
| Stitch length | 2~7 | ||
| Speed of production | 60-130M/H | 80-150M/H | 80-150M/H |
| Model of needle | 14#-21# | ||
| Speed of main shaft | 500~1000RPM | 500-1000RPM | 500-1000RPM |
| Total power required | 4KW | 4.5KW | 5.5KW |
| Voltage | 380V/50HZ 220V/60HZ | ||
| Gross weight | 3000kg | 4000kg | 5000kg |
