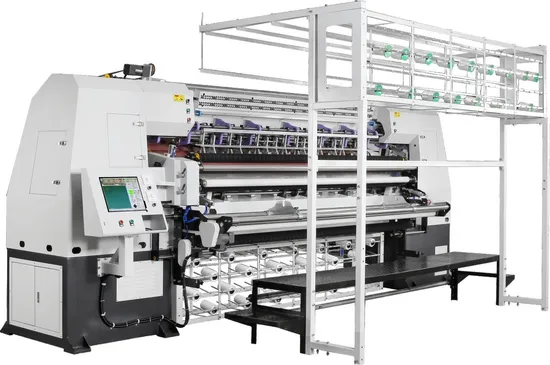

High Quality China Stitch Multi

• Overview
• Main technical parameters
• FAQ

Basic Info.

Packaging & Delivery

Product Description

(1) Q: Why Choose Our Company?
A: History: TONGDA Textile Machinery Group was establish in 1952. Now have more than 65 years old history. Main Products: TONGDA Group specializes in design, manufacturing, and marketing of a wide range of Textile machinery, it has seven branch companies, mainly produces ring spinning frame, roving frame, weaving machine (water Jet loom/Air jet loom/rapier Loom), warping machine, quilting machine and nonwoven machine. We provide design for complete line of spinning mill for cotton yarn, polyester yarn, wool yarn, flax/linen yarn, machines including blow room, carding machine, draw frame, roving frame, ring frame, winding machine, open end spinning machine and the air conditioning system and waste collection system for spinning mill. We also provide workshop layout design and trench design, and air pipe layout design.

(2) Q: How's the after-sale service?
A: We offer engineers available to service overseas under merchandiser's supervision and translation.

(3) Q: Are you available for on-the-spot invitation?
A: We do welcome our new and old friends come here to have a visitation. Besides, we would send you our exposition and relative information to promote a face-to-face meeting if you'd like to.

(4) Q: Is the price offered changeable?
A: We offer reasonable price for every client, and the price is changeable according to purchasing amount.

(5) Q: How about the quality?
A: The main subassembly and raw materials are all supplied by large companies. Key parts are research and developed by our own staff. Professional assembly line work and strict quality test system can ensure your high quality requirement.

(6) Q: Are you a manufacturer or Trade Company?
A: We are a professional manufacturer holding our own International Trade Department, for that we can better understand customer's needs and offer a reasonable price.

(7) Q: Product /Quality Guarantee and After Sale Service?
A: 1 year warranty for the International standard. We are work online 24 hours. If you have any questions about our machine you can contact us.

(8) Q: One-stop Service:
A: We have R&D department including more than 100 engineers which are improving and enlarging our supply range.

(9) Q: Certification?
A: TONGDA is an ISO9001, ISO14001, and ISO13485 company. The products are designed to meet the technical standards of 3C and CE. All the products are certified by the Industry Administration Authority. TONGDA will continue to strive to be a stronger leader in the global market of Cotton machinery and Spinning machinery.

Diversified functions

Based on the Multi-needle Quilting Machines and with all the functions of Multi-needle Quilting Machine, at the same time also with the functions of single needle quilting. With much more output comparing with Single Needle Quilting Machines and with more patterns comparing with Multi-needle Quilting Machines.

Adopting Chain stitch quilting mechanism

Avoid frequent bottom thread replacement and make quilting stitches firmer. The needle bar and press plate are controlled by a double-swinging camless device, preventing material lubrication and dirt. It has automatic stop for thread breakage, automatic needle lifting, and CNC speed adjustment.

Many Varieties

New generation of CNC system, high precision quilting, dispense with too much parameter adjustment or pattern modification during quilting. Strong functions of pattern-combining and Tack & Jump quilting to enable you to quilt different patterns in same row of the mattresses.

New type retainer frame structure

Servo system is used in X-Y-Z axis, that can improve 30% production for independent patterns. Newly reinforced structure makes it work more stably. Raising supporting board makes it more convenient to opperate and maintain. Y axis reduction gearbox makes it work more fluently with low-noise.

Fast speed and high output

Optimized the mechanical structure make the higher speed and more production. Press plate lifting can be adjusted by one-button according to different material thickness. More tight thread stitches make the quilting pattern with stronger third dimension.

Various quilting patterns

Needle bar and press plate are controlled by a doubles-winging device without cam avoiding lubrication and dirtying of material. Multi-span and independent patterns (360°, 180° patterns).Automatic stop motion control in case the top thread or thhe bottom thread breaks, automatic needle-lifting and CNC speed adjustment.

High output

New type retainer frame structure, with the advantages of low noise. Optimized the mechanical structure make the higher speed and more production. Press plate lifting can be adjusted by one-button according to different material thickness.

Fast operation speed

Automatic stop motion control in case the top thread or the bottom thread breaks, automatic needle-lifting and CNC speed adjustment. Outstanding features such as high rigidity,high running speed, low vibration and noise.

Multi-span independent pattern

Adopting the new structure of press plate's adjusting makes thhe machine much simple. Multi-span independent pattern (360°and 180° patterns are available). Advanced and practical up thread-break detection unit.

Easy to operate

No need to adjust the press plate's position when the the thickness of quilting material varies. Outstanding features such as high rigidity, high running speed, low vibration and noise.

Graphically accurate

New generation of CNC system, high precision quilting, dispense with too much parameter adjustment or pattern modification during quilting.

Three-dimensional pattern

Optimized mechanical structure makes higher speed and more production. More tight thread stitches makes the quilting patterns with stronger three dimensional effect. Strong functions of pattern-combining and multi-span quilting too enable you to quilt different patterns in each row in the mattresses of different sizes.

Precise needle distance

Needle space is 0.5 inch, thus it can produce lines with spaceof 0.5 inch and with more pattern combinations.

Slitting devices

With slitting devices, which enable the edge taping materials nnore accurately and effectively.

Flexible production mode

The user can use one quilting machine TD-W-BSJ to produce edge taping materials, it also can combine TD-W-BSJ and TD-W-SJ working together, which has higher production efficiency.

High rigidity body

Outstanding features such as high rigidity, high running speed, low vibration and noise. No need to adjust the press plate's position when the the thickness of quilting material varies.

Automation Equipment

Multi-span and independent patterns (360°and 180° patterns are available). Automatic stop motion control in case the top thread or the bottom thread breaks, automatic needle-lifting and CNC speeed adjustment. CE Certificate.

CAD drawings

Easy preparation of CAD drawings extremely precise. Strong functions of pattern-combining and multi-span quilting to enable you to quilt different patterns in each row in the mattresses of different sizes.
