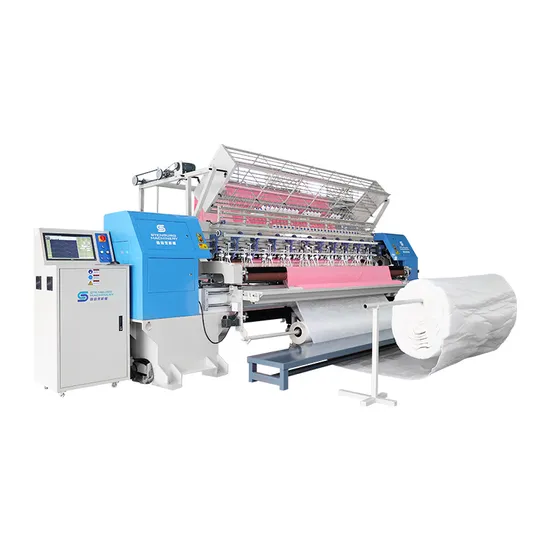

Mattress Computer Lock Stitch Shuttle Multi

Model NO.	HY-128-3A
Certification	ISO, CE, Ispa
Condition	New
Number of Head	Multi-Needle
Voltage	380V/220V
Type	Computerized Quilting Machine
Stitch Length	2-5mm
Quilting Width	3300mm
Space Between Needles	25.4mm
Thickness of Quilting	Less Than 25mm
Transport Package	Wooden Box
Trademark	XIDENGBAO
Origin	China(Mainland)
HS Code	8452219000
Production Capacity	10 Sets/Month

HY-128-3B Computerized Lock Stitch Multi-needle Quilting Machine

Technical Specification

Model	HY-64-3B	HY-94-3B	HY-112-3B	HY-128-3B
Dimension(L×W×H)	380013201800mm	465013201800mm	578013201830mm	555013201830mm
Quantity of needle bar	3	3	3	3
Quilting width	1600mm	2400mm	2850mm	3250mm
Space between needle rows	76.2,152.4	76.2,152.4	76.2,152.4	76.2,152.4
Space between needles	25.4mm	25.4mm	25.4mm	25.4mm
X-axis movement displacement	203.2mm	305mm	305mm	305mm
Thickness of quilting	≤25mm	≤25mm	≤25mm	≤25mm
Stitch length	2~5mm	2~5mm	2~5mm	2~5mm
Speed of production(m/h)	20-120	20-120	20-120	20-120
Model of needle	16#,19#	16#,19#	16#,19#	16#,19#
Speed of main shaft(RPM)	500~750	500~750	500~750	450~650
Total power required	5KW	5KW	6KW	6KW
Voltage	380V/50HZ 220V/60HZ	380V/50HZ 220V/60HZ	380V/50HZ 220V/60HZ	380V/50HZ 220V/60HZ
Gross weight	3200kg	4200kg	4500KG	5000kg
